2025  AERO-TRAILERS  8.5X20TA52  - RH3109

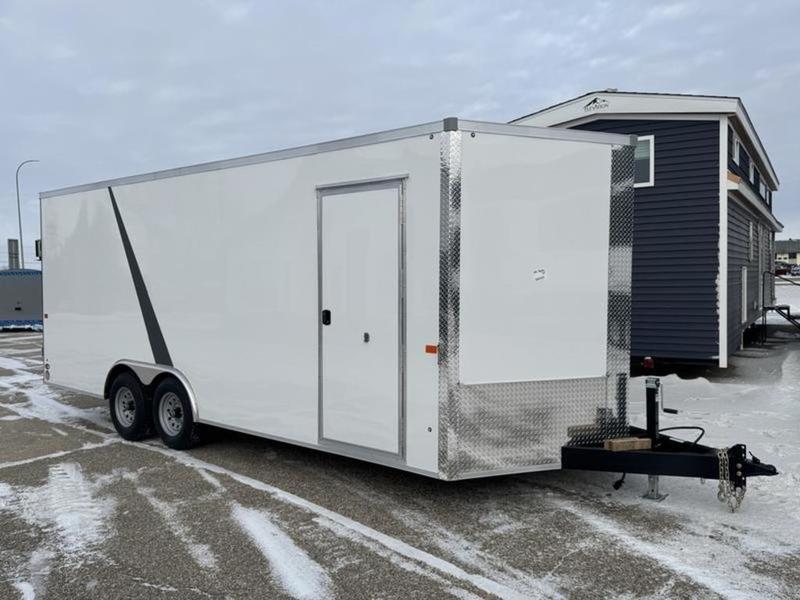

8.5X20 Enclosed Cargo Trailer with Ramp Starter Flap

STANDARD FEATURES
2”x3” (6’ wide), 2”x4” (7’ wide), 2x6 (8 ½’ wide) Tube Main Frame & Tongue

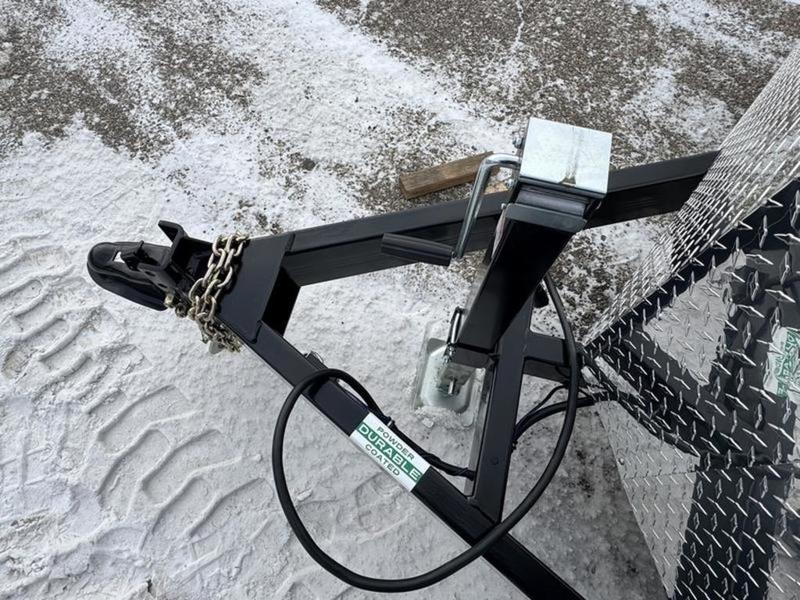

2” (6’ wide), 2 5/16” (7’ wide) A-Frame Coupler with Safety Chains (adjustable coupler on 8 ½’ wide)
2,000 lb. Rated Top Wind Jack (7k jack on 8 ½’ wide)
Lippert Spring Axle with 6 Bolt Hub, Electric Brakes on 7’ & 8 ½’ wide
Powder Coat Frame Finish

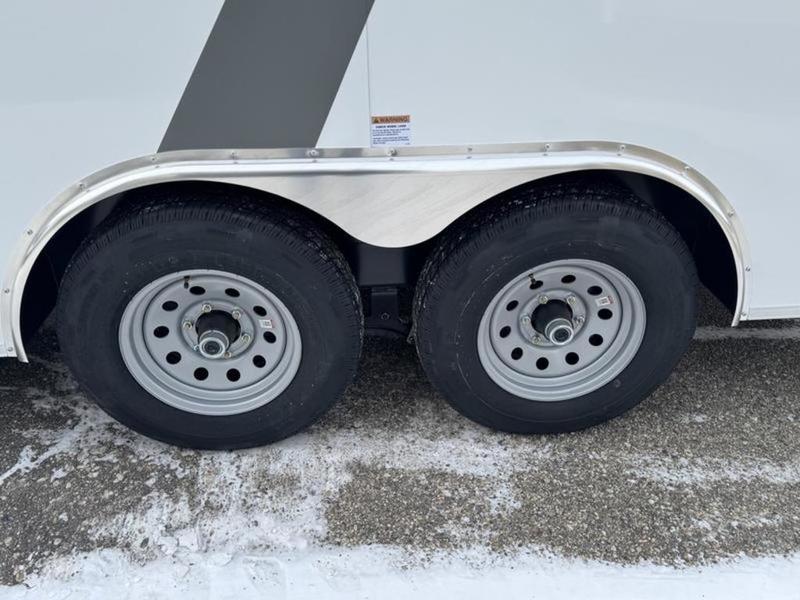

ST205/75R15 Radial Tires (ST225/75R15 on 8 ½’ wide)
Silver Modular Steel Wheels
Smooth Aluminum Fenders
Screw-less .030 Aluminum Exterior with vinyl accent stripe
16” On Center Floor Members
16” On Center Tube Wall Studs
16” On Center Tube Roof Bows
¾” Engineered Tongue & Groove Wood Floor

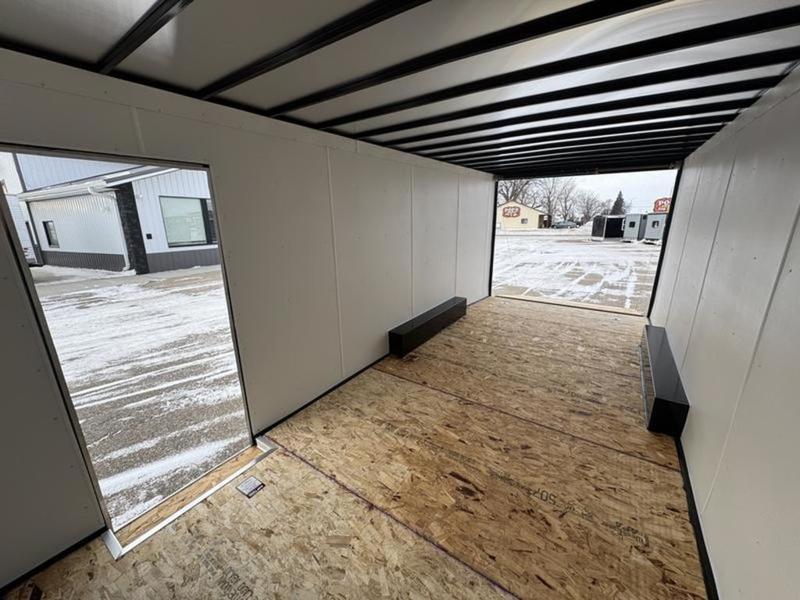

1/8” Luan Interior Walls (white walls on 8 ½’ wide)

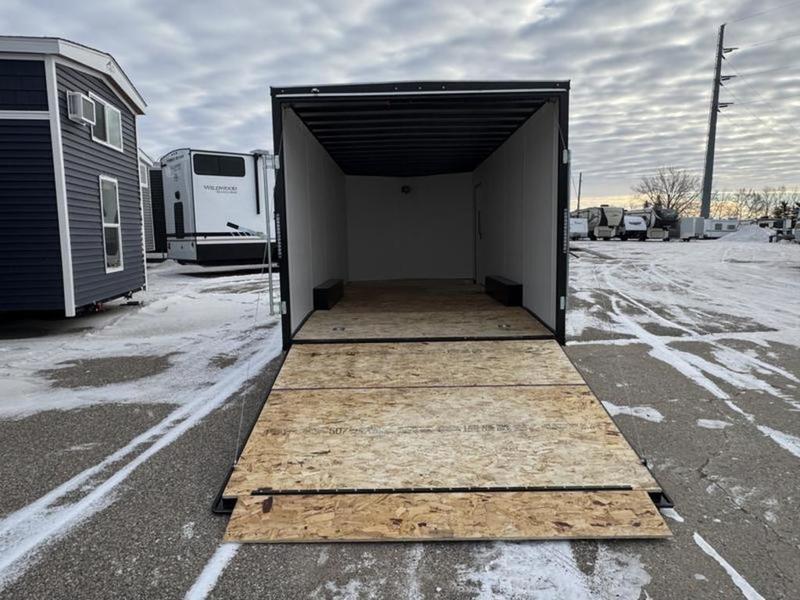

Double Spring Assisted Rear Ramp Door
24” Front Stone Guard
DOT Compliant LED Exterior Lights
LED Interior Light
1-Piece Seamless Aluminum Roof

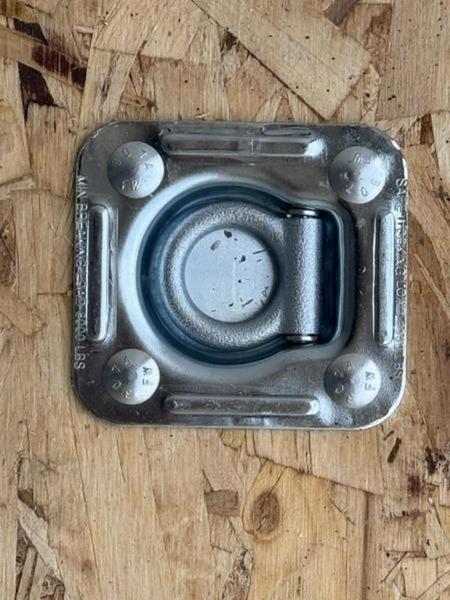

Four D-rings
Side Entry Door with RV Latch
Tall Interior Height Standard

8 ½’ WIDE SPECIFICATIONS

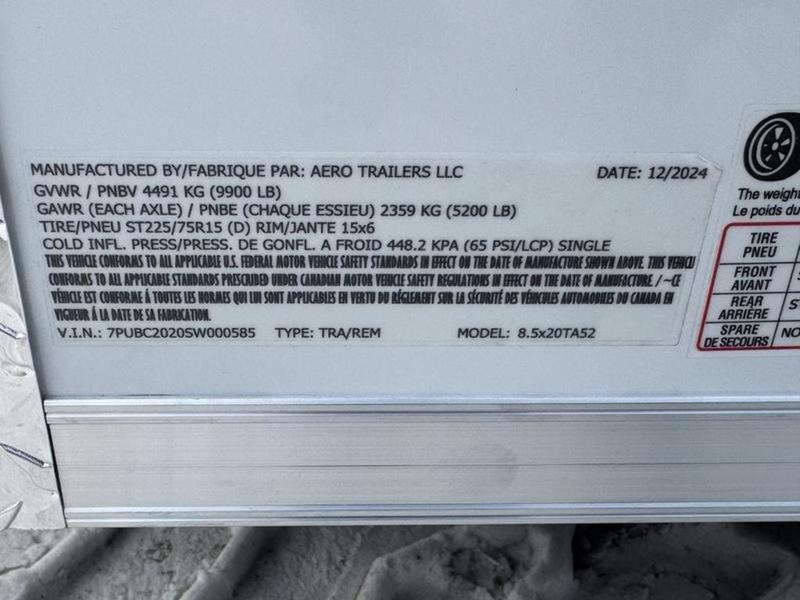

GVWR: 9,900#
Overall Length: 302“ (25’-2”)
Overall Width: 102”
Overall Height: 109“
Interior Length: 261“ (21’-9”)
Interior Width: 100“
Interior Height: 85“
Rear Opening Height: 83“
