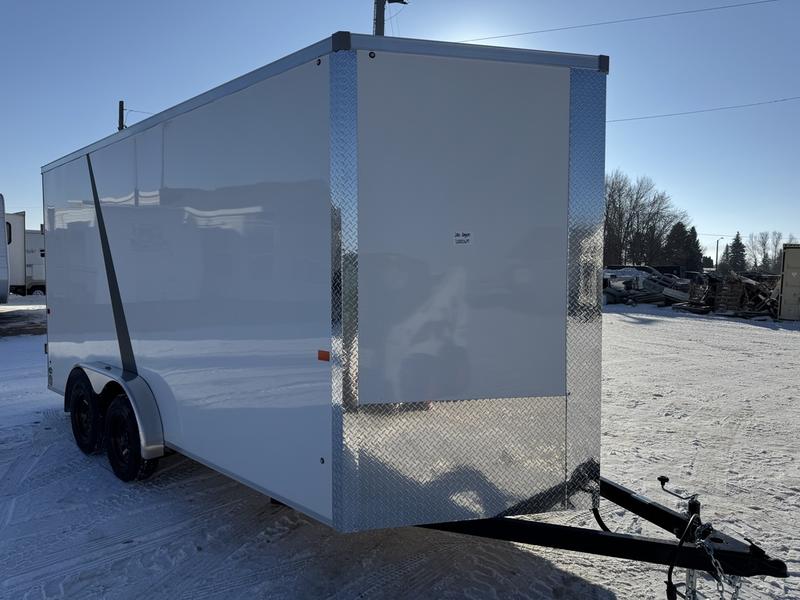

2025  AERO-TRAILERS  7.5X16TA35UTV  - RH3124

STANDARD FEATURES
2”x3” (6’ wide), 2”x4” (7’ wide), 2x6 (8 ½’ wide) Tube Main Frame & Tongue

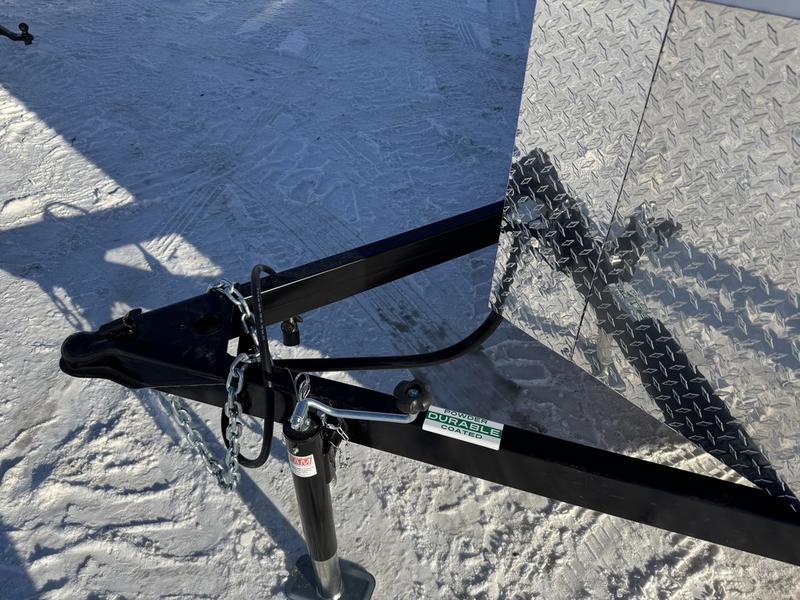

2” (6’ wide), 2 5/16” (7’ wide) A-Frame Coupler with Safety Chains (adjustable coupler on 8 ½’ wide)
2,000 lb. Rated Top Wind Jack (7k jack on 8 ½’ wide)
Dexter Spring Axle with 6 Bolt Hub, Electric Brakes on 7’ & 8 ½’ wide
Powder Coat Frame Finish
ST205/75R15 Radial Tires (ST225/75R15 on 8 ½’ wide)
Silver Modular Steel Wheels
Smooth Aluminum Fenders
Screw-less .030 Aluminum Exterior with vinyl accent stripe
16” On Center Floor Members
16” On Center Tube Wall Studs
16” On Center Tube Roof Bows

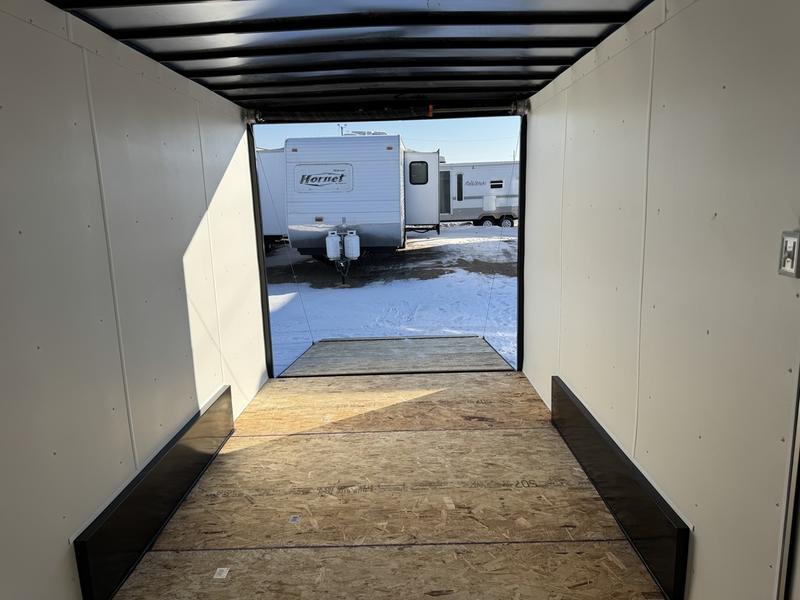

¾” Engineered Tongue & Groove Wood Floor
1/8” Luan Interior Walls (white walls on 8 ½’ wide)

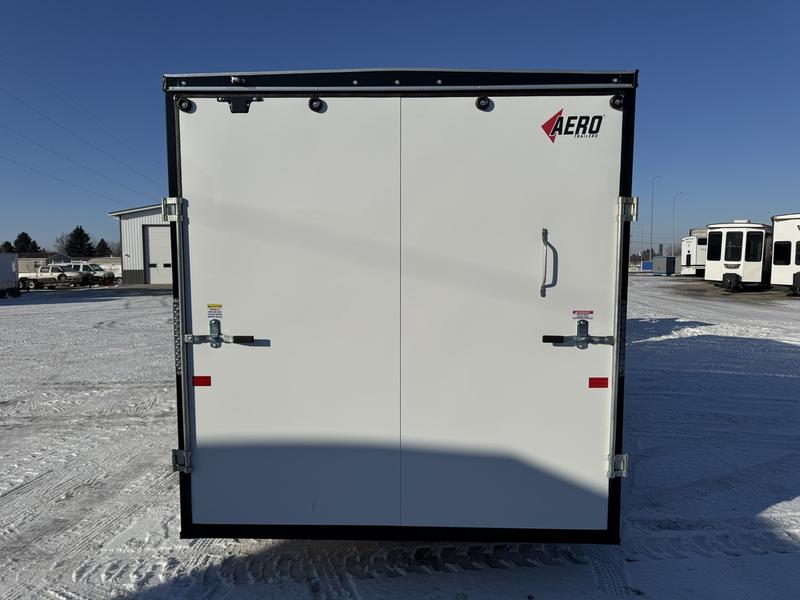

Double Spring Assisted Rear Ramp Door
24” Front Stone Guard
DOT Compliant LED Exterior Lights
LED Interior Light
1-Piece Seamless Aluminum Roof
Four D-rings
Side Entry Door with RV Latch
Tall Interior Height Standard

7.5’ WIDE SPECIFICATIONS
GVWR: 7000 lbs
Empty weight: 2700 lbs
Payload capacity 4300 lbs
Overall length: 252" 21 ft
Overall width: 102 in
Overall height: 107 in
Interior length: 216" 18 ft
Interior width: 87 in
Interior height: 87.5 in
Rear opening height: 83.5 in
